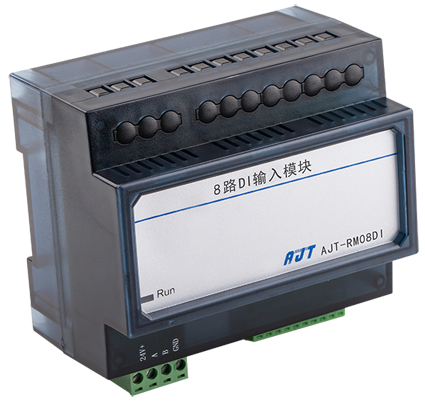

8-way DI input module

Product features：
I. Model Product name 8-way DI input module Model AJT-RM08DI II. Functions ● 8-way switching signal input ● Capable of linkage control according to time setting ● Delay time can be set III. Technical Parameters Operating voltage 12-24

hotline：15986638876

Product details

I. Model

Product name	8-way DI input module
Model	AJT-RM08DI

II. Functions
● 8-way switching signal input
● Capable of linkage control according to time setting
● Delay time can be set

III. Technical Parameters

Operating voltage	12-24V DC Starting current: 60 mA
Operating current	Standby current: 60 mA
	Maximum operating current: 65 mA
Operating environment	Temperature: 0℃~45℃, humidity: 10%~95%
Communication interface	485 bus, 4-digit 5.08 plugged terminal
Switching input	Dry contact signal, use of 3.5 wiring terminals, common ground
Mounting mode	35 mm standard rail mounting (6 modulus)
Dimensions	108mm(W)×88mm(H)×66mm(D)
Weight	200g
