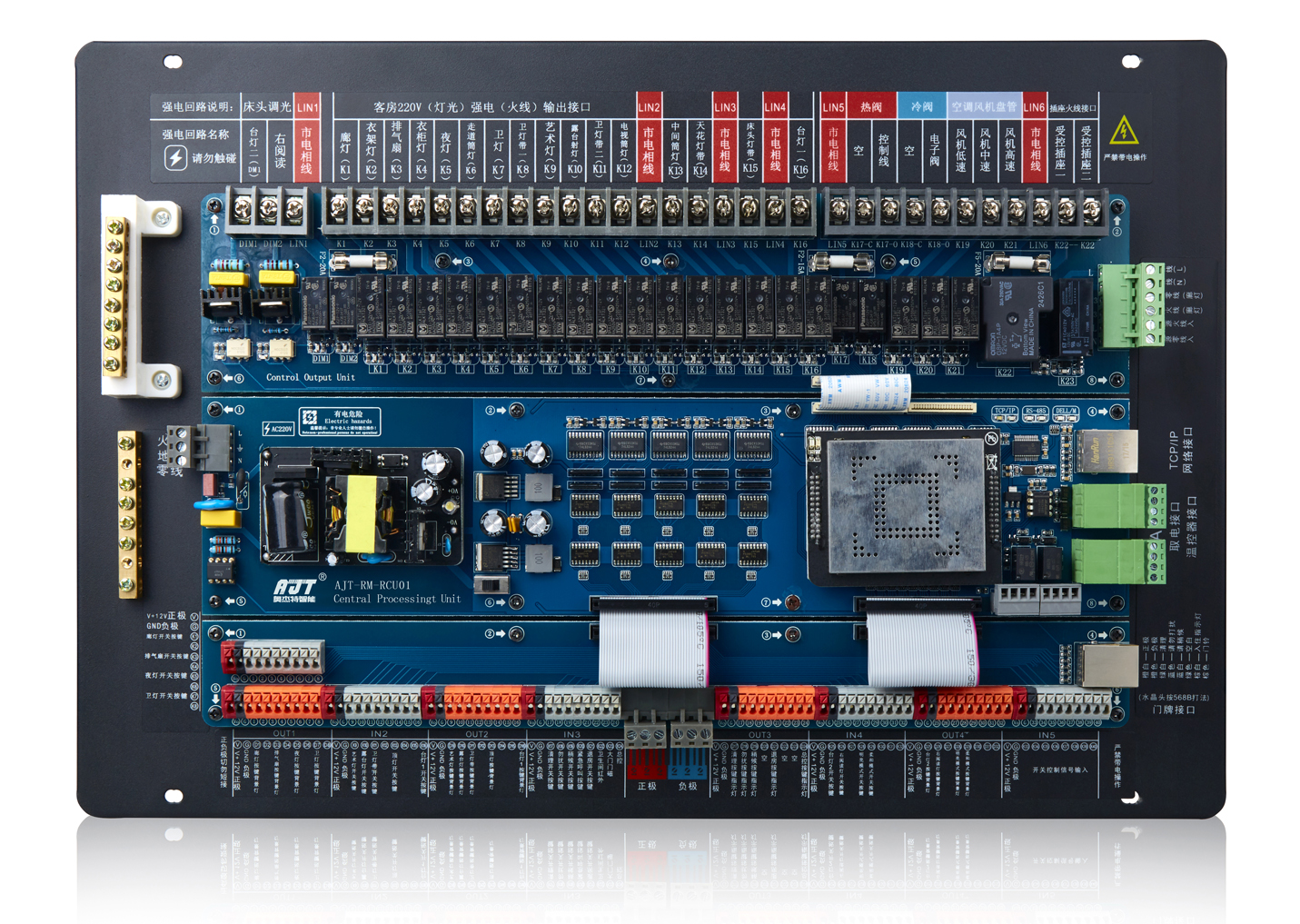

Hotel guest control RCU (extended type/standard type)

Product features：
I. Model Product name Hotel guest control RCU (extended type/standard type) Model AJT-RM-RCU02 II. Functions ● TCPIP/CAN module function, supporting internet application ● Provided with UPS emergency power supply, toggle switch, network

hotline：15986638876

Product details

I. Model

Product name	Hotel guest control RCU (extended type/standard type)
Model	AJT-RM-RCU02

II. Functions
● TCPIP/CAN module function, supporting internet application
● Provided with UPS emergency power supply, toggle switch, network, 485 protocol and door bell fault indicator detection

●NTC anti-surge protection and anti-interference design
● Supporting the definition of 2 timers and 16 scenes.
● With light control and incandescent lamp dimming function
● Supporting controller configuration through internet port TELNET and serial port super terminal
● Supporting wireless extension (such as ZIGBEE, 2.4 G, WIFI, Bluetooth and RF)
As the core component of hotel room control system, AJT-RM-RCU01 hotel room controller, with ST ARM32 series network and single chip computer as the control core, processes various operation panel signals, controls the actions of such actuators as relay, valve, connects to intelligent devices or control terminals and realizes various network communication functions to meet the intelligent room control needs of starred hotels.

III. Technical Parameters

Input power supply	Mains 220VAC 50Hz
Overall power consumption	＜10W
Ethernet	10/100Mbps FULL DUPLEX
ELV input	30-way dry contact input
ELV output	10-way 12 V (5V)/100 mA
Relay output	18-way 250 VAC/8 A, 1-way 250 VAC/30 A (extended)
Dimming output	10-way 220 VAC/2 A
Dry contact output	3-way 250 VAC/5 A
Access of temperature sensor	2-way NTC temperature sensor
Auxiliary power output	12VDC@1A、24VDC@250mA
Temperature acquisition accuracy	1℃
Switching value scan cycle	＜10s
Serial port	RS232/RS485
Case dimensions	460mm(W)×350mm(H)×80mm(D)
